B15 FUEL

Tips & Tricks:
B15 fuel pump install

b15 fuel pump
1. Buy the fuel pump kit from JGY.
2. Take pump and fuel level assembly out of tank.
3. Snap top part from bottom.

b15 fuel pump kit
4. Take filter off.
5. Take trim piece off bottom.
6. Take pump out through bottom.

b15 fuel pump kit
7. Compare pumps.

b15 fuel pump kit
8. Trim panel to clear pump.

b15 fuel pump kit
9. Trim pump nipples to clear panel.
10. Re - use stock filter
11. Re - install in reverse order.

aeromotive fuel pump kit
Aeromotive 340 LPH fuel pump kit, now includes filter kit, rated for 700HP: $115

walbro fuel pump kit
Walbro High pressure fuel pump kit in stock: $104


nismo fpr
Nismo Fuel Pressure Regulator
Fits stock rail and our superior rail, in stock: $127

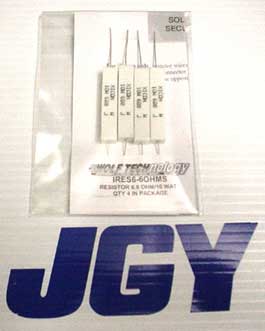

inline resistors
Inline resistors
For low impedance injectors only - $3.99, per


Injector Dynamics ID1700 1700cc 60mm length injectors
Injector Dynamics ID1700 1700cc 60mm length injectors
Injector Dynamics 1700cc Injectors - 60mm Length - 11mm Blue Top - 14mm Lower O-Ring (Set of 4) available in 14mm top as well. JGY price: $974

The ID1700 is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700 was designed to fill the gap between the ID1300 and the ID2000, and like the ID1300, it features corrosion resistant internals making it compatible with all known automotive fuels, you read that right, and that means E85.

A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700 immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700 excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.

The ID1700 was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.

The ID1700 will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.

If you need flawless drivability on gasoline, then buy the ID1300 will provide this, and is capable of approximately 150hp per injector on E85.

Injector Dynamics ID1050X 14mm injectors
Injector Dynamics ID1050X Injectors 14mm (Purple) (Set of 4): $440
The ID1050x is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.

top feed 50lb injectors
JGY Top Feed High Volume 550cc (50lb) Injectors
High quality, bench flowed and matched
Guaranteed fitment and function with our rails
Just .75ms latency at 13v
Many applications: $65 each

top feed 72lb injectors
JGY Top Feed High Volume 750cc (72lb) Injectors
High quality, bench flowed and matched
Guaranteed fitment and function with our rails
Just .75ms latency at 13v
Many applications: $75 each

top feed 96lb injectors
JGY Top Feed High Volume 1000cc (96lb) Injectors
High quality, bench flowed and matched
Guaranteed fitment and function with our rails
Just .75ms latency at 13v
Many applications: $75 each

ID 2000cc injectors
Injector Dynamics 2000cc injectors, 60mm length, 14mm top: $240 each (Call for special pricing)

60lb injectors
60 lb injectors
Ideal for JWT ECU tune: $75 each

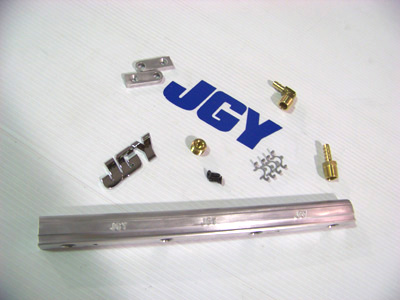

qr25 rail
NEW JGY QR25 fuel rail: $139

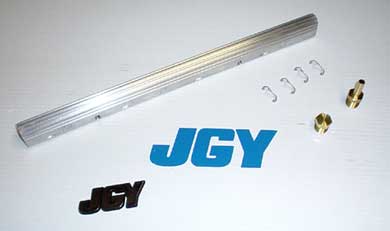

fuel rail kit
fuel rail kit
JGY Fuel rail kit
This kit is for 1999 and up, B15 Sentra / G20(T), SR20DE(T) low port motor, in stock: $139
Comes with a free JGY emblem!


msd injector connectors
MSD injector connectors - $5, per
